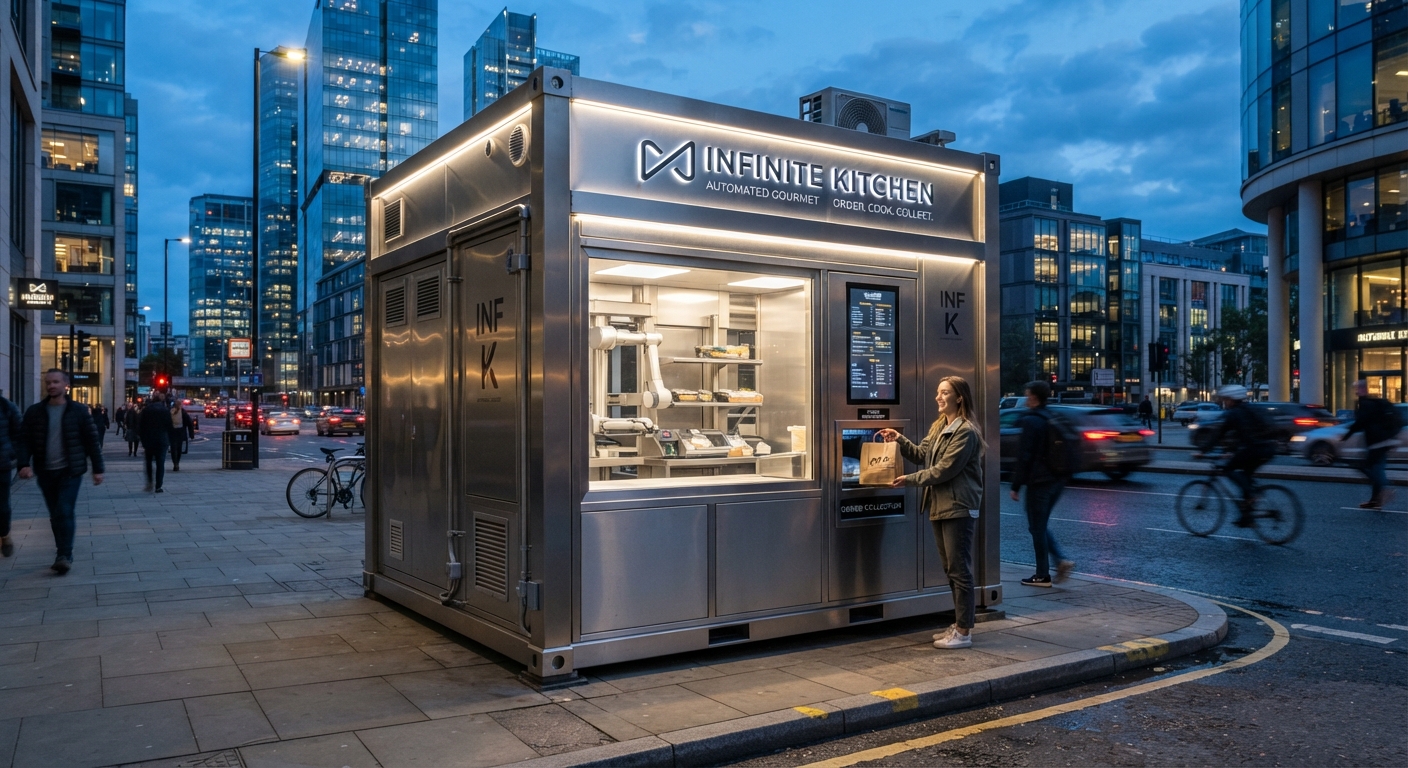

Pod Overview

AUTOMATED GOURMET MICRO-FACTORY

INFINITE KITCHEN

INVESTOR MEMORANDUM SPECIFICATION 2.0
Commercial Autonomous Architecture

THE FUTURE OF
HIGH-THROUGHPUT
AUTONOMOUS DINING

Engineered to deliver 1,200+ chef-quality hot meals daily within a modular 120 sq ft footprint. Powered by 6-axis robotics, high-efficiency thermal woks, and zero-human-touch dispatch.

90/HR
Peak Meal Rate
60.8%
Gross Margin
4.5 MO
Simple Payback

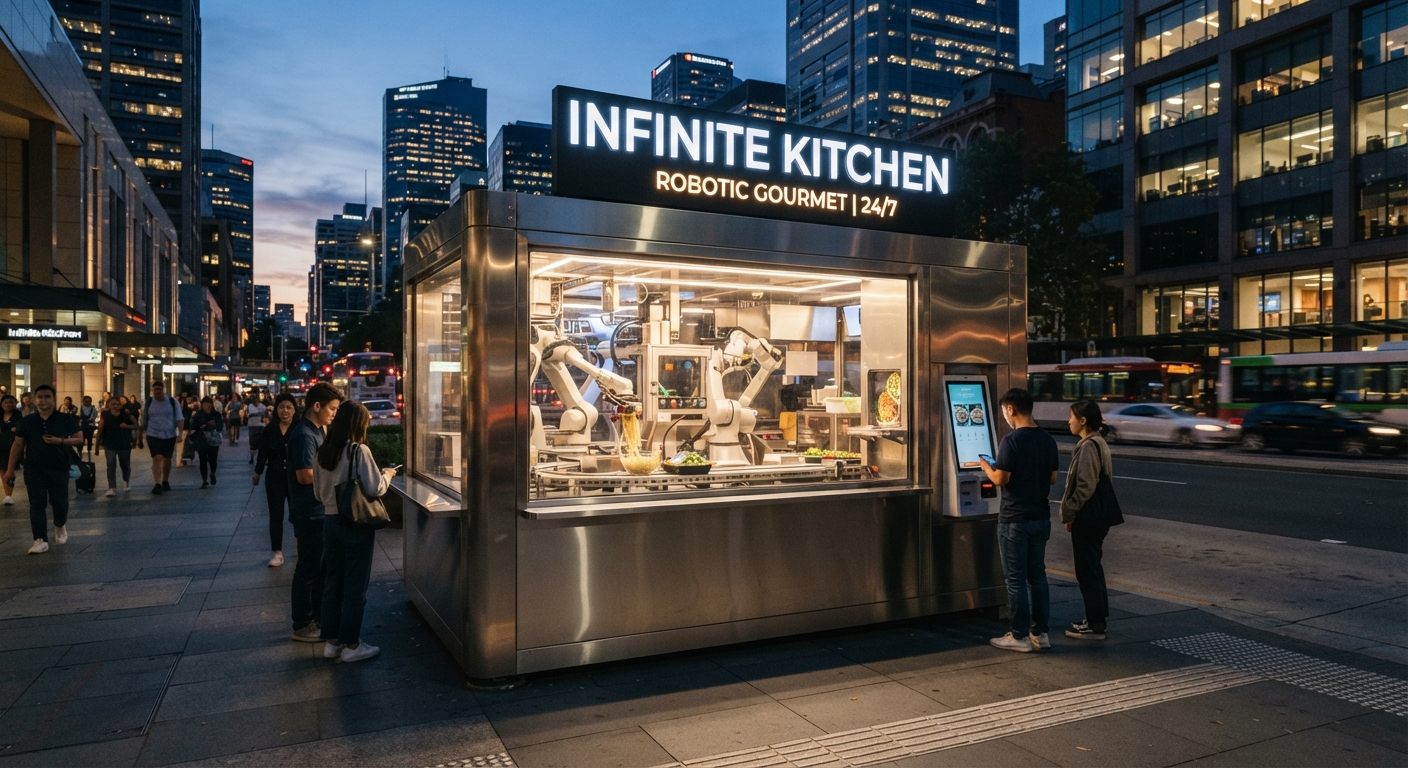

Outside City Curbside

Urban Curbside Deployment

Plug-and-play installation in prime high-density centers.

OPEN HARDWARE CONCEPT - EARLY ESTIMATES, SUBJECT TO PROTOTYPE VALIDATION PAGE 01
Engineering Specification

Hardware Cutaway & Floor Plan

PAGE 02

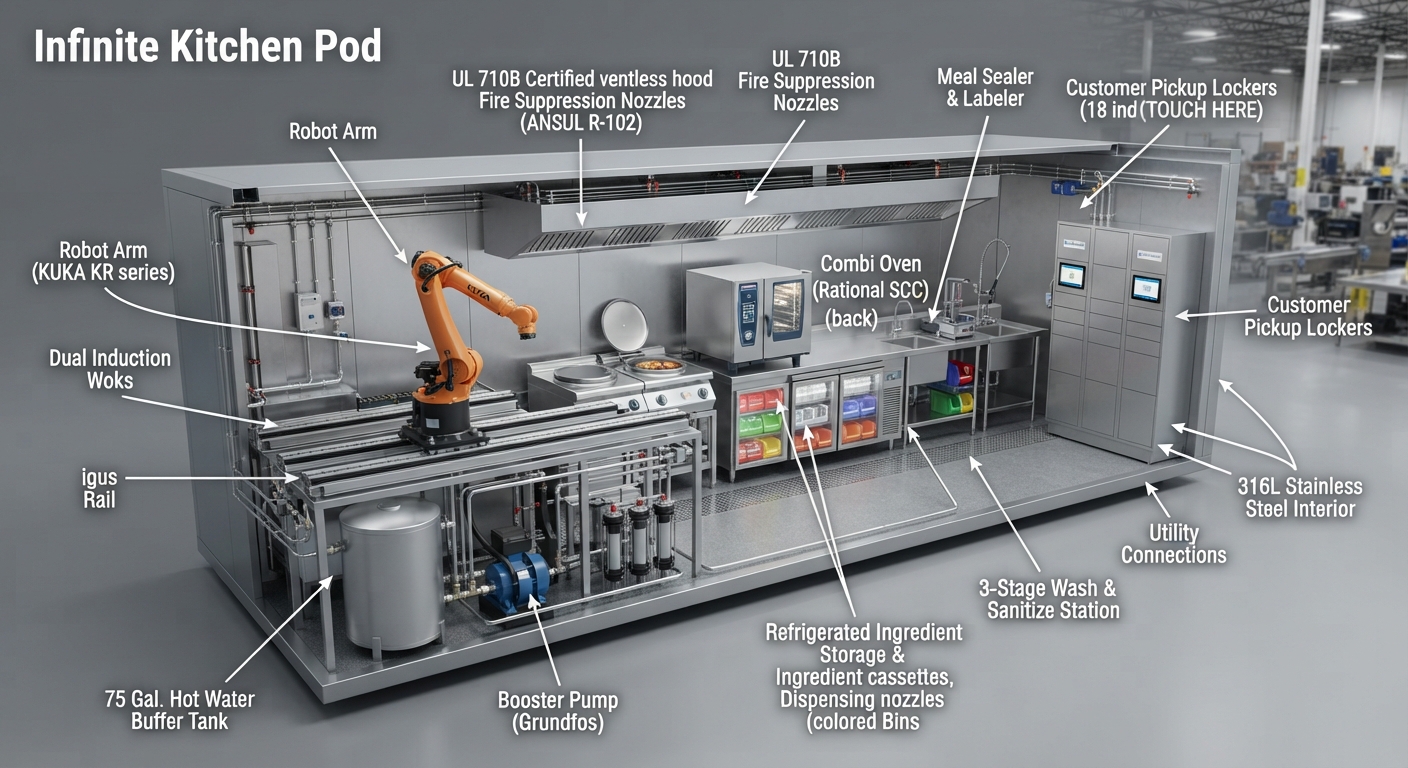

Cutaway Interior FIG 2.1: FULL SYSTEM CUTAWAY
CAD Spec Exterior FIG 2.2: CAD EXTERIOR & FOOTPRINT

ARCHITECTURAL TOP-DOWN FLOOR PLAN (1.8m W x 1.2m D x 2.4m H)

NSF & UL 710B COMPLIANT
ZONE 1: STORAGE Refrigerated Doser Ingredient Cassettes ZONE 2: THERMAL CORE & ROBOTICS 6-DOF igus Linear Rail Track Wok 1 Wok 2 Combi Bake CIP Wash Basin UL 710B Ventless Canopy Hood & ANSUL System ZONE 3: DISPATCH Auto-Sealer & Labeler Smart Lockers (18) & Drone Elevator Axis

Robotic Arm Assembly

6-DOF industrial arm with custom magnetic end-effector for rapid swap between woks and bowls.

Thermal Core Array

Dual 5kW induction woks reach 600°F in under 12 seconds with precision heat modulation.

Safety & Exhaust

Zero ducting required. Internal HEPA, electrostatic precipitator & ANSUL fire suppression system.

DIMENSIONS: 1.8m (W) x 1.2m (D) x 2.4m (H) POWER REQUIREMENTS: 3-PHASE 480V / 60A
Culinary Engineering

Gourmet Execution & Throughput

PAGE 03

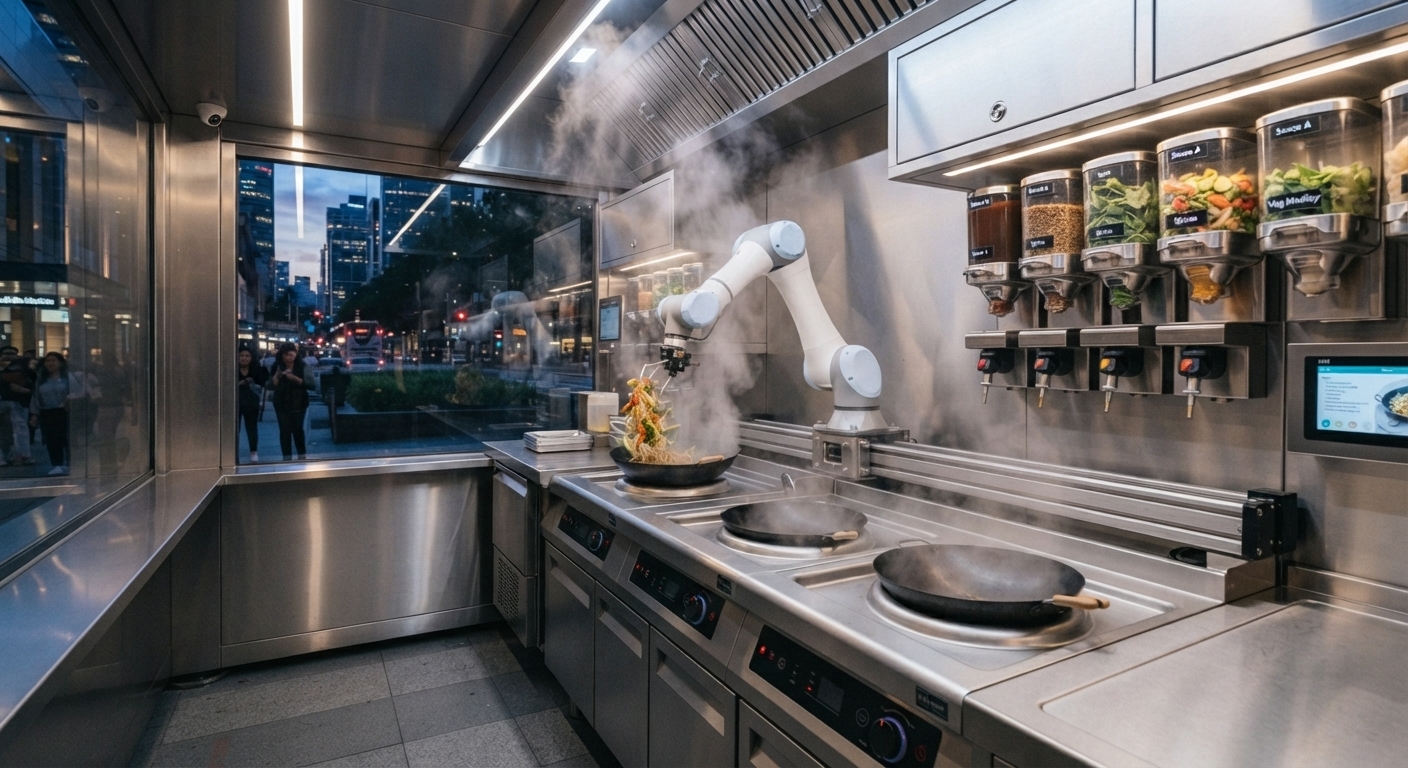

Robot Arm Wok Action FIG 3.1: HIGH-HEAT WOK INDUCTION

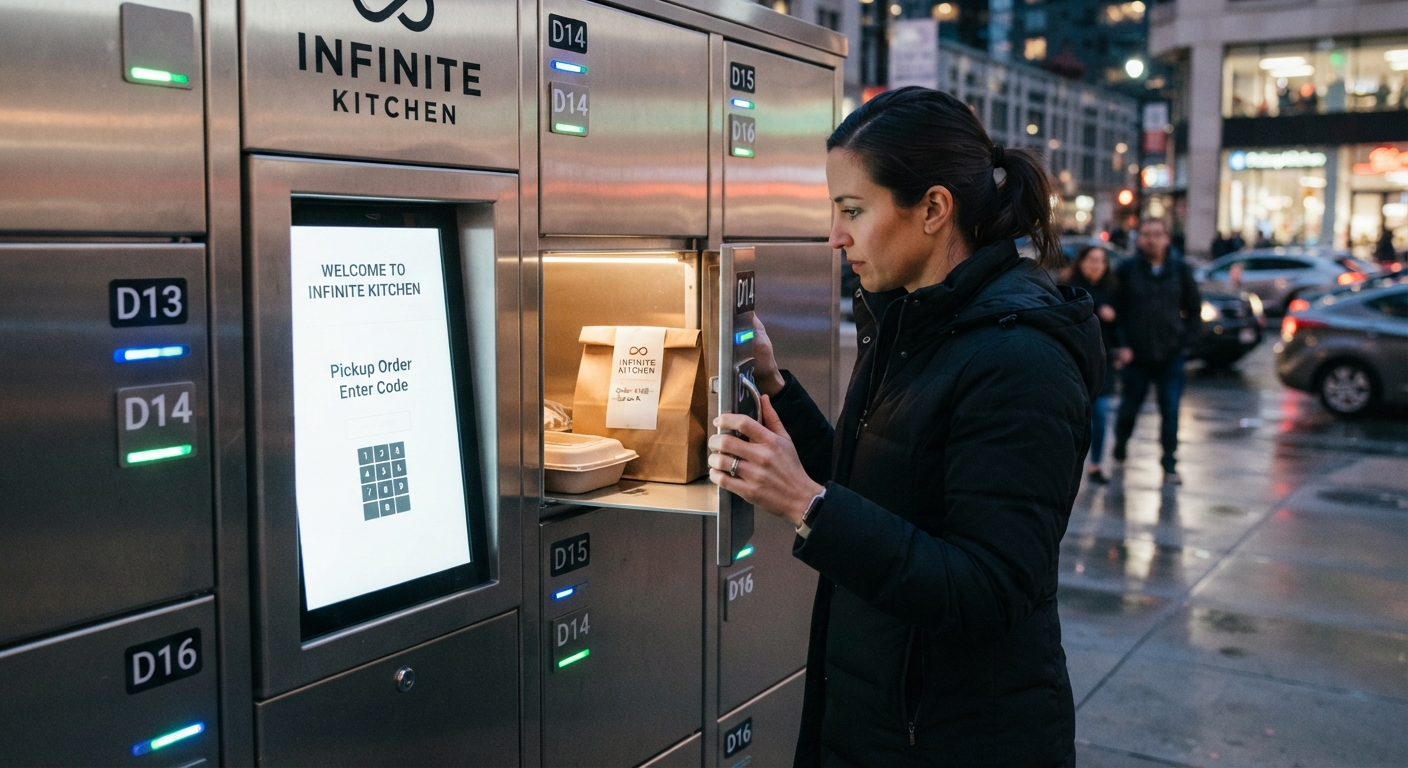

Pickup Lockers Close Up FIG 3.2: HEATED PICKUP LOCKERS

PEAK HOURLY MEAL PRODUCTION CAPACITY (UNITS / HOUR)

3.6X TRADITIONAL KITCHEN DENSITY
Combi Batch Mode 120 / hr Peak Autonomous Wok 92 / hr Off-Peak Single Wok 45 / hr Ghost Kitchen (Human) 25 / hr
MODE 01

Authentic Wok Hei

High-g force robotic tossing motion reproduces traditional wok searing.

MODE 02

Precision Steam/Bake

Moisture-controlled combi cavity for dim sum, roasts, and gourmet pasta.

MODE 03

Fresh Chilled Bowls

Gram-accurate cold ingredient dispensing for poké & artisanal salads.

MODE 04

Hermetic Sealing

Film top heat seal locks temperature & prevents spillages during transit.

DISPENSING ACCURACY: ±0.5 GRAMS REPEATABILITY RATING: 99.85% MICHELIN SPECS
Sanitation Architecture

Clean-In-Place & Sanitation Flow

PAGE 04

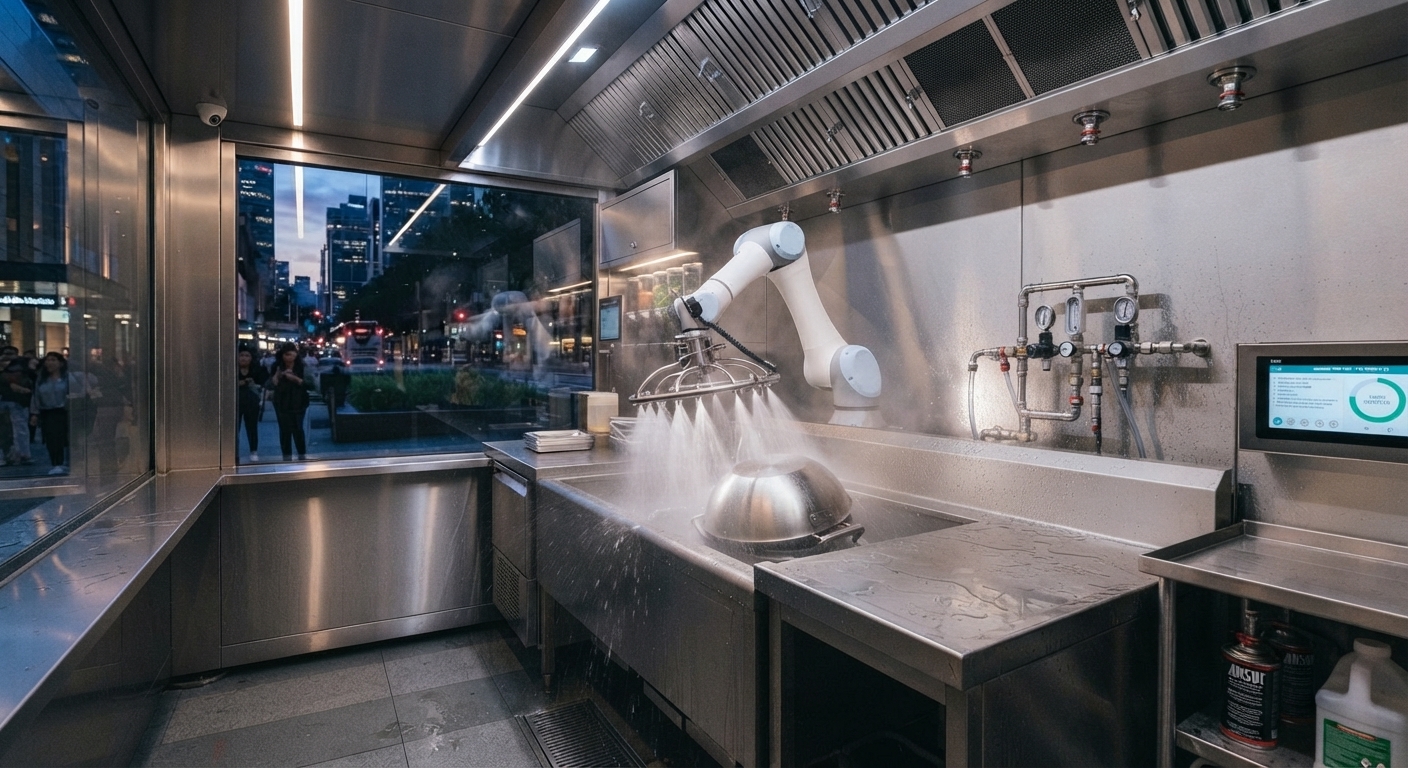

Inside Wash Station
FIG 4.1: 180°F HIGH-PRESSURE CIP SANITATION CHAMBER

END-TO-END AUTONOMOUS MEAL & SANITATION FLOW DIAGRAM

FDA 2022 §4-602.11 COMPLIANT
1. ORDER INPUT API / App Dispatch Queue Allocation 2. THERMAL COOK 600°F Induction Wok or Combi Bake Cycle 3. 3-STAGE CIP WASH 180°F Hot Rinse Ultrasonic & Air Dry (45 Sec Cycle) 4. SEAL & AIRLOCK Hermetic Film Seal QR Thermal Label 5. DISPATCH • Smart Lockers • Drone Roof Deck • Auto Vehicle Bay
FDA FOOD CODE COMPLIANT

Section 4-602.11 Standard

Automated thermal wash rings execute full multi-stage sanitization after every single preparation cycle.

NSF INTERNATIONAL

NSF/ANSI Standard 169

Certified special purpose food equipment construction with food-grade 316L stainless surfaces.

UL SAFETY LISTED

UL 710B Ventless Recirculation

Integrated EPA 204 test-compliant grease extraction system eliminates external duct requirements.

WATER HEATING CORE: 75-GAL INTEGRATED BUFFER TANK SANITIZER DOSING: CLOSED-LOOP SENSOR VERIFIED
Fulfillment Automation

Autonomous Last-Mile Logistics

PAGE 05

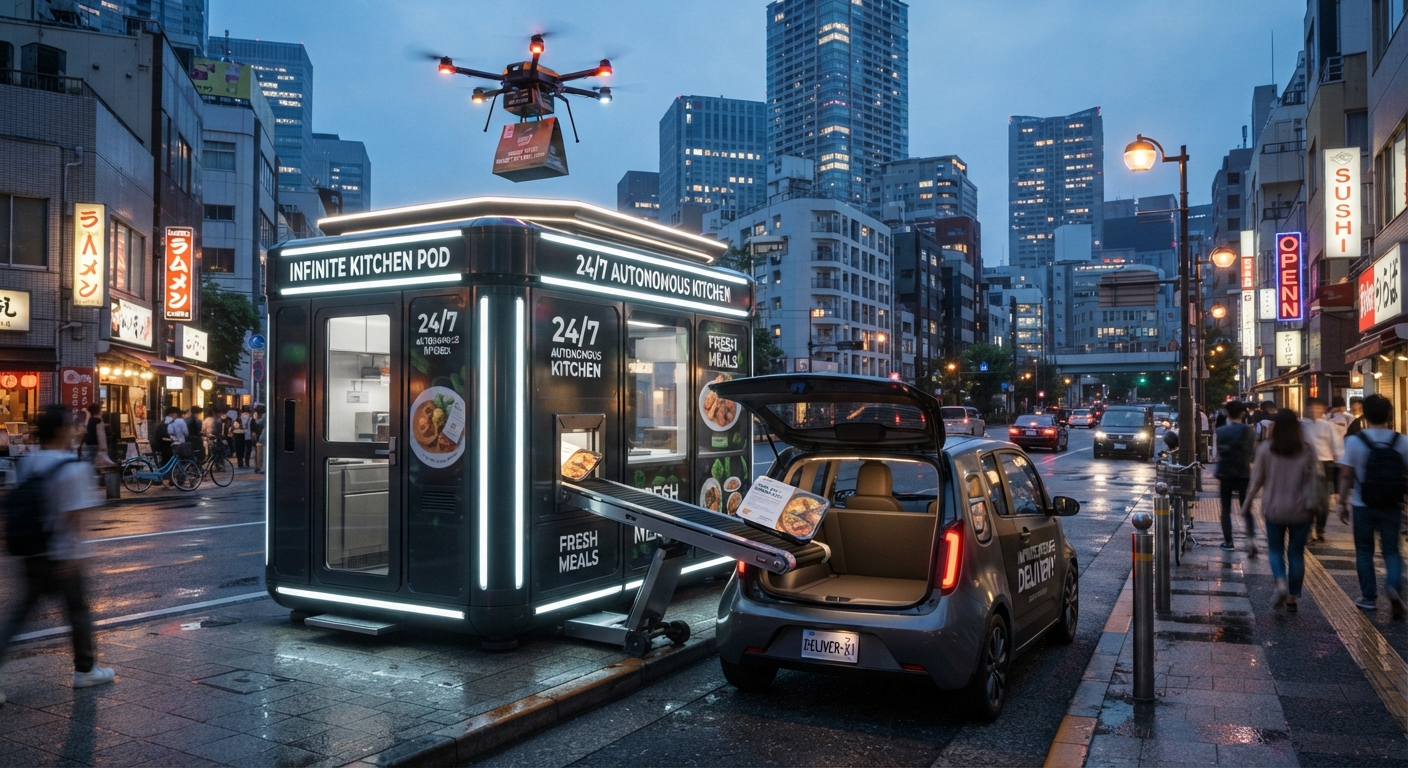

Drone and Car Delivery FIG 5.1: MULTI-MODAL AUTONOMOUS DISPATCH
Lockers Close Up

Touchless Customer Lockers (140°F Hot / 38°F Cold)

Ground Autonomous Bay

Integrated side pass-through window drops packaged meals directly into autonomous delivery vehicle trunks.

01

Rooftop Drone Helipad

Internal vertical lift moves sealed meals directly to the roof launch pad for aerial drone dispatch in under 15 minutes.

02

Autonomous Ground Fleet

Zero-human touch handoff to delivery robots via automated airlock conveyor system with real-time status telemetry.

03

Smart Thermal Lockers

18 dual-climate customer pickup lockers featuring mobile QR scanning and instant thermal regulation.

FLEET API COMPATIBLE WITH ALL MAJOR LOGISTICS PLATFORMS SUB-10 SECOND DISPATCH LATENCY
NETWORK TELEMETRY: REAL-TIME SECURE API LOCKER CAPACITY: 18 DUAL-ZONE CASSETTES
Investment & Deployment Options

Dual Commercial Deployment Plans

PAGE 06
PLAN 01 • DIRECT OWNERSHIP CapEx Model

Turnkey Hardware Purchase

$185,000 / Pod Upfront
  • ✓ Direct BOM Cost: $72,450 (60.8% Hardware Gross Margin)
  • ✓ SaaS Cloud Platform Fee: $1,200 / month
  • ✓ Simple Payback Horizon: 4.5 Months
  • ✓ Ideal For: Franchisees & Long-Term Real Estate Owners
MAXIMUM LONG-TERM CASH FLOW
PLAN 02 • LOW CAPEX FLEET OpEx Subscription

Robot-as-a-Service (RaaS)

$8,500 / month
  • ✓ Initial Site Setup & Commissioning: $15,000
  • ✓ All-Inclusive Subscription: Hardware, SaaS & Telemetry
  • ✓ 24/7 SLA Guarantee: Preventive maintenance & hardware replacements
  • ✓ Ideal For: Rapid Fleet Expansion & Risk-Averse Operators
ZERO HARDWARE DEPRECIATION RISK

PLAN 1 CUMULATIVE NET CASH FLOW ($ USD) & 4.5-MONTH BREAKEVEN

NET MO PROFIT: $41,500
+$300k +$150k $0 (Breakeven) -$185k Mo 0 Mo 2 Mo 4.5 (Payback) Mo 8 Mo 10 Mo 12 ($313k)
Exterior CAD Pod

Modular Outdoor Footprint

INFINITE KITCHEN INC. CORPORATE & FLEET PARTNERSHIPS
OPEN HARDWARE CONCEPT
DIRECT HARDWARE BOM: $72,450 HARDWARE GROSS MARGIN: 60.8% ($112,550)
